Ever looked at a perfectly terminated wire and wondered how it achieved such a secure and professional finish? The answer lies in a technique that's essential for electrical connections, networking, and even jewelry making. It's a seemingly simple process, but mastering it can elevate your projects from amateur to expert level.
Have you ever struggled with loose wires that pull out of connectors, leading to intermittent connections and frustrating troubleshooting? Or perhaps you've dealt with bulky, unreliable connections that compromise the aesthetics and functionality of your projects? These are common issues that arise when proper termination methods aren't employed.
The primary purpose of crimping is to create a secure, gas-tight connection between a wire and a connector. This ensures reliable electrical conductivity and prevents corrosion or loosening over time.
This article explores the world of crimping, a technique vital for creating robust and lasting connections in various applications. We'll delve into its purpose, methods, history, tips, and common questions to help you understand and master this essential skill. Key concepts include wire termination, connectors, crimp tools, and connection reliability.
Crimping in My Life
I remember the first time I tried crimping. It was a disaster! I was trying to fix a faulty network cable in my home office. I had the cable, the RJ45 connectors, and a borrowed crimping tool. I thought, "How hard can this be?" Turns out, pretty hard.
My first few attempts resulted in mangled connectors and wires that were barely holding on. I didn't realize the importance of using the right tool, stripping the wires correctly, and inserting them into the connector in the correct order. I ended up spending hours wrestling with that cable, and in the end, I just bought a new one. Looking back, it was a valuable learning experience. I learned the importance of proper technique and the right tools.
Now, I approach crimping with a newfound respect and understanding. I invest in quality crimping tools and take the time to prepare the wires carefully. The result is a professional and reliable connection that I can be proud of.
The purpose of crimping extends beyond just holding wires together. It creates a secure, gas-tight connection that prevents corrosion and ensures reliable electrical conductivity. A properly crimped connection is stronger and more durable than a soldered connection, making it ideal for applications where vibration or movement is a concern.
Crimping: What is it?
Crimping is a method of joining two pieces of metal by deforming one or both of them to hold the other. This is typically done with a specialized tool that applies pressure to the metal, creating a tight and secure connection. In the context of electrical wiring, crimping involves attaching a connector to the end of a wire by compressing the connector around the wire.
The process usually involves stripping the insulation from the end of the wire, inserting the bare wire into the connector, and then using a crimping tool to compress the connector around the wire. The tool is designed to apply the correct amount of pressure to create a secure connection without damaging the wire or the connector.
Different types of connectors require different crimping tools. For example, RJ45 connectors used for networking cables require a different tool than the insulated terminals used in automotive wiring. It's crucial to use the correct tool for the specific connector to ensure a proper and reliable crimping.

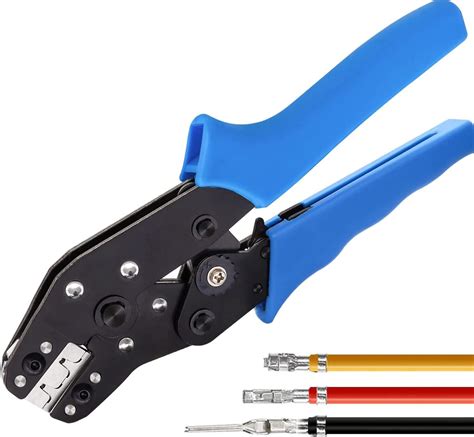

Crimping Tool" />
Beyond electrical applications, crimping is also used in jewelry making, metalworking, and other industries where a secure and reliable mechanical connection is needed.
History and Myths of Crimping
The history of crimping can be traced back to the early days of electrical engineering and telecommunications. As the need for reliable electrical connections grew, so did the development of crimping techniques and tools. Early crimping tools were simple and manual, but over time, they have evolved into sophisticated and automated machines.
One common myth about crimping is that it's a simple process that anyone can do without proper training or tools. While it's true that crimping is relatively straightforward, achieving a reliable and durable connection requires attention to detail and the use of appropriate tools. Another myth is that soldering is always a better alternative to crimping. While soldering can provide a strong electrical connection, it's not always the best choice for applications where vibration or movement is a concern. Crimped connections are often more resistant to these types of stresses.
The evolution of crimping technology has led to the development of specialized connectors and tools for various applications. From automotive wiring to aerospace engineering, crimping plays a crucial role in ensuring the reliability and safety of electrical systems.
Hidden Secrets of Crimping
One of the hidden secrets of crimping lies in understanding the importance of "gas-tight" connections. A gas-tight connection is one where the crimped joint is so tight that it prevents air and moisture from entering, thus preventing corrosion and ensuring a long-lasting connection. Achieving a gas-tight connection requires using the correct crimping tool and applying the correct amount of pressure.
Another secret is the importance of wire preparation. Before crimping, the wire should be stripped carefully to avoid damaging the conductors. The length of the stripped wire should also be precise to ensure that the wire is fully inserted into the connector and that the crimp is made in the correct location.
Furthermore, the quality of the connector itself plays a significant role in the reliability of the crimped connection. Using high-quality connectors made from durable materials will ensure that the connection can withstand the stresses of its intended application.
Beyond the technical aspects, another secret is the "feel" of a good crimp. An experienced technician can often tell whether a crimp is good just by the way it feels in their hand. This comes from years of experience and a deep understanding of the crimping process.
Recommendation of Crimping
When it comes to crimping, my top recommendation is to invest in quality tools. A good crimping tool will make the process easier, faster, and more reliable. It will also help to ensure that you're creating gas-tight connections that will last for years to come.
I also recommend taking the time to learn the proper techniques for crimping. There are many resources available online, including videos and tutorials, that can teach you the basics of crimping. Practice makes perfect, so don't be afraid to experiment and try different techniques until you find what works best for you.
Another recommendation is to always use the correct connector for the specific application. Different types of connectors are designed for different types of wires and different types of environments. Using the wrong connector can lead to unreliable connections and even safety hazards.
Finally, I recommend always inspecting your crimped connections to ensure that they are properly made. Look for any signs of damage or corrosion. If you're not sure whether a connection is good, it's always better to re-crimp it.
Crimping: Deeper Dive into Specific Applications
Crimping is essential in various industries, each with specific requirements. In automotive applications, crimping is used extensively in wiring harnesses and electrical systems. The harsh environment of a vehicle demands robust and reliable connections, making proper crimping crucial for safety and performance.
In networking, crimping is used to terminate Ethernet cables with RJ45 connectors. A secure and accurate crimp is vital for ensuring high-speed data transmission and preventing network disruptions. Using a quality crimping tool and following the correct wiring sequence are essential for reliable network connections.
Aerospace is another industry where crimping is critical. The extreme conditions and high-reliability requirements of aircraft systems demand the highest standards of crimping. Specialized tools and connectors are used to ensure that connections can withstand vibration, temperature changes, and other environmental factors.
Even in electronics manufacturing, crimping is used for various connections, from simple wire-to-board connections to complex cable assemblies. Proper crimping ensures the functionality and longevity of electronic devices.
Tips for Perfect Crimping
Achieving perfect crimping requires attention to detail and adherence to best practices. One of the most important tips is to use the correct crimping tool for the specific connector you're working with. Using the wrong tool can result in a weak or unreliable connection.
Another essential tip is to strip the insulation from the wire carefully, avoiding any damage to the conductors. Damaged conductors can weaken the connection and lead to corrosion over time. Use a wire stripper that is designed for the gauge of wire you're working with.
When inserting the wire into the connector, make sure that it's fully seated and that the conductors are evenly distributed. This will ensure that the crimp is made evenly across the entire connection.
After crimping, always inspect the connection to ensure that it's secure and that there are no signs of damage. Tug on the wire to make sure that it's firmly held in place. If you're not satisfied with the crimp, re-crimp it or use a new connector.
Crimping: Troubleshooting Common Issues
Despite following best practices, you may encounter issues with crimping. One common problem is a weak or loose connection. This can be caused by using the wrong crimping tool, not applying enough pressure, or using a damaged connector. If you encounter a weak connection, try re-crimping it with a different tool or connector.
Another issue is corrosion. This can be caused by moisture or contaminants entering the connection. To prevent corrosion, use connectors that are designed for the environment in which they will be used. You can also apply a sealant or protectant to the connection.
Sometimes, the wire may break or pull out of the connector. This can be caused by using the wrong gauge of wire, stripping the wire improperly, or not inserting the wire fully into the connector. To prevent this, use the correct gauge of wire and follow proper stripping and insertion techniques.
If you encounter any of these issues, don't be afraid to experiment and try different solutions. With practice and patience, you'll be able to troubleshoot common crimping problems and create reliable connections.
Fun Facts About Crimping
Did you know that the force required to make a good crimped connection can be several tons? This demonstrates the immense pressure required to create a gas-tight seal between the wire and the connector. It's also why using a high-quality crimping tool is so important.
Another fun fact is that the design of crimping tools and connectors has evolved significantly over time. Early crimping tools were simple and manual, but today, there are sophisticated automated machines that can crimp thousands of connections per hour.
The world record for the most RJ45 connectors crimped in one minute is held by [Insert Record Holder Name]. This feat requires incredible speed and precision, demonstrating the skill and dexterity involved in crimping.
Furthermore, the term "crimping" is not limited to electrical connections. It's also used in other industries, such as jewelry making, where crimping beads are used to secure strands of beads together.
How To Crimping: A Step-by-Step Guide
Follow these steps to crimp like a pro:
- Gather your materials: You'll need a wire, a connector, a crimping tool, and a wire stripper.
- Strip the wire: Use the wire stripper to remove the insulation from the end of the wire. Be careful not to damage the conductors.
- Insert the wire into the connector: Make sure that the wire is fully seated and that the conductors are evenly distributed.
- Crimp the connector: Place the connector into the crimping tool and squeeze the handles firmly.
- Inspect the connection: Make sure that the connection is secure and that there are no signs of damage.
Remember to always use the correct crimping tool for the specific connector you're working with. Using the wrong tool can result in a weak or unreliable connection. Practice makes perfect, so don't be afraid to experiment and try different techniques until you find what works best for you.
With a little practice, you'll be crimping like a pro in no time!
What if... Crimping Goes Wrong?
What happens if your crimping goes wrong? A bad crimp can lead to a variety of problems, from intermittent electrical connections to complete failure of the circuit. A loose or poorly crimped connection can cause resistance, which can generate heat and potentially start a fire. Therefore, it is crucial to ensure that your crimped connections are secure and reliable.
If you suspect that a crimp is bad, the first step is to inspect it visually. Look for signs of damage, such as cracks or deformation in the connector. Also, check that the wire is fully inserted into the connector and that the insulation is not pinched or damaged.
Next, perform a tug test. Gently pull on the wire to see if it comes loose from the connector. If the wire pulls out easily, the crimp is bad and needs to be redone. If the wire seems secure, you can use a multimeter to test the continuity of the connection. A high resistance reading indicates a poor connection.
If you determine that a crimp is bad, the best course of action is to cut off the old connector and crimp on a new one. Always use a new connector, as reusing a connector can compromise the integrity of the connection.
Listicle of Crimping Essentials
Here's a handy list of crimping essentials to keep in mind:
- Use the right tool for the job. Different connectors require different crimping tools.
- Prepare your wires carefully. Strip the insulation without damaging the conductors.
- Insert the wire fully into the connector. Ensure proper contact.
- Apply sufficient pressure when crimping. A firm, even pressure is key.
- Inspect your crimping. Look for damage and test the connection.
- Invest in quality connectors. They make a difference.
- Practice, practice, practice. The more you crimp, the better you'll get.
- Know when to re-do a crimp. Don't settle for a questionable connection.
- Consider the environment. Use connectors suitable for the conditions.
- Stay safe! Always disconnect power before working on electrical connections.
Question and Answer about Crimping
Q: What is the difference between crimping and soldering?
A: Crimping is a mechanical process that uses pressure to join a wire and a connector, while soldering uses heat to melt solder and create an electrical connection. Crimped connections are often more durable and resistant to vibration, while soldered connections can provide better conductivity in some cases.
Q: Can I use any crimping tool for any connector?
A: No, it's crucial to use the correct crimping tool for the specific connector you're working with. Using the wrong tool can result in a weak or unreliable connection.
Q: How can I tell if a crimp is good?
A: A good crimp should be secure, with no signs of damage or corrosion. The wire should be fully inserted into the connector, and the connection should pass a tug test without the wire pulling out.
Q: Where can I learn more about crimping?
A: There are many resources available online, including videos, tutorials, and articles. You can also find training courses and workshops that teach crimping techniques.
Conclusion of Crimping
Crimping is more than just squeezing a connector onto a wire. It's about creating a reliable and durable connection that will stand the test of time. By understanding the principles of crimping, using the right tools, and following best practices, you can master this essential skill and ensure the success of your electrical projects.
