Ever tried assembling a complex electronic project, only to find yourself wrestling with messy solder and inconsistent connections? Imagine a world where soldering becomes cleaner, more precise, and yields reliable results every single time. That world is closer than you think, and it revolves around a seemingly simple yet powerful tool: solder paste.
For those involved in electronics assembly, common issues like inconsistent solder application, difficulty soldering surface mount components, and the frustration of rework are all too familiar. Achieving uniform solder joints can be a challenge, and the time spent correcting errors can quickly add up, impacting productivity and project timelines.
The purpose of this article is to introduce you to solder paste, a game-changer for electronics assembly in Indonesia. We'll explore what it is, how it works, its advantages, and some best practices to help you achieve professional-quality solder joints, regardless of your experience level.
In essence, we'll be diving into the world of solder paste – its composition, application techniques, and the benefits it offers over traditional soldering methods. Key terms we'll be covering include solder alloys, flux, reflow soldering, stencil application, and surface mount technology (SMT). Prepare to unlock a new level of precision and efficiency in your electronics projects!
Solder Paste: My First Encounter

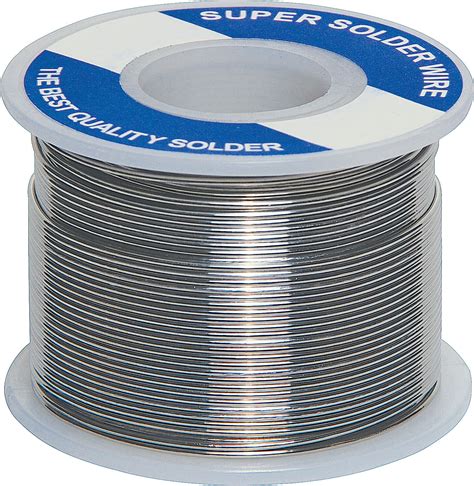

I remember the first time I encountered solder paste. I was working on a university project involving a densely populated PCB with tiny surface mount components. Up until then, I had only used traditional solder wire, and the results were, let's just say, less than stellar. Bridges between pins, cold solder joints, and components accidentally knocked off their pads were the norm. My professor, seeing my struggles, suggested I try solder paste and a stencil. I was hesitant at first; it seemed like a complicated process. But I decided to give it a try. After watching a few tutorials and practicing on a spare board, I applied the paste with the stencil, placed the components, and put the board in a reflow oven. The result was amazing. All the components were perfectly soldered, with clean and consistent joints. It was a turning point for me. From then on, solder paste became an indispensable tool in my electronics toolkit.
Solder paste is especially beneficial for soldering surface mount components (SMCs). These tiny components are ubiquitous in modern electronics and are nearly impossible to solder effectively with traditional methods. Solder paste allows for precise and controlled application, ensuring each component receives the correct amount of solder. The controlled environment of reflow soldering minimizes the risk of overheating and damage to sensitive components. This is crucial for ensuring the reliability and longevity of electronic devices. Furthermore, using a stencil simplifies the process, making it accessible even for those with limited soldering experience. The right solder paste, combined with the right technique, can transform even the most challenging soldering tasks into manageable and predictable processes.
What is Solder Paste?
Solder paste is essentially a homogenous mixture of tiny solder alloy particles, flux, and a paste-like binder. Think of it as pre-mixed solder, ready to be applied to your PCB. The solder alloy is what forms the metallic bond between the component and the board, while the flux cleans the surfaces to ensure a strong and reliable connection. The binder holds everything together and gives the paste its consistency, allowing for easy application.
The composition of solder paste is carefully controlled to achieve specific properties. The size and shape of the solder particles, the type of flux used, and the rheology (flow properties) of the paste all play a crucial role in its performance. Different types of solder paste are available for different applications, depending on the type of components being soldered, the soldering temperature, and the desired level of residue cleaning. For example, lead-free solder paste is often used to comply with environmental regulations, while no-clean solder paste is used to simplify the assembly process by eliminating the need for post-soldering cleaning. The flux in solder paste is activated by heat, removing oxides and impurities from the surfaces to be joined. This ensures that the molten solder wets the surfaces properly, creating a strong and reliable bond. Without flux, the solder would simply ball up and not adhere to the metal.
The History and Myths of Solder Paste
While the exact origins of solder paste are difficult to pinpoint, the concept of combining solder alloy with flux for easier application has been around for quite some time. Early forms of solder paste were likely hand-mixed and inconsistent in their composition. However, with the advent of surface mount technology (SMT) in the 1980s, the need for a more precise and reliable soldering method became apparent. This led to the development of modern solder paste, with its controlled particle size, flux content, and rheological properties.
One common myth about solder paste is that it's only for professional use. While it's true that solder paste is widely used in industrial electronics assembly, it's also perfectly accessible to hobbyists and DIY enthusiasts. With the availability of affordable stencils and reflow ovens (or even makeshift solutions like toaster ovens), anyone can achieve professional-quality solder joints with solder paste. Another myth is that solder paste has an unlimited shelf life. In reality, solder paste can degrade over time, especially if not stored properly. The flux can dry out, and the solder particles can oxidize, leading to poor soldering results. It's always best to check the expiration date on the package and store the solder paste in a cool, dark place, preferably in a refrigerator.
The Hidden Secrets of Solder Paste
One of the lesser-known secrets of solder paste lies in its rheology, or flow properties. The ideal solder paste should be thixotropic, meaning it becomes less viscous when subjected to stress (like when being spread across a stencil) and then returns to its original viscosity when at rest. This allows for easy application and prevents the paste from slumping or spreading uncontrollably. Achieving the right rheology requires careful control of the paste's composition and manufacturing process.
Another secret is the importance of proper storage. As mentioned earlier, solder paste can degrade over time, but the rate of degradation can be significantly slowed down by storing it in a refrigerator. The low temperature reduces the rate of oxidation and prevents the flux from drying out. However, it's crucial to allow the solder paste to warm up to room temperature before using it. Applying cold solder paste can lead to poor wetting and inconsistent solder joints. Furthermore, the stencil material itself can significantly affect the quality of solder paste deposition. Stainless steel stencils are generally preferred for their durability and precision, but other materials like polyester can also be used for prototyping or low-volume production. The thickness of the stencil should be carefully chosen to match the size and pitch of the components being soldered. Too thin, and you won't get enough solder; too thick, and you risk bridging between pins. Finally, proper reflow profiling is essential for achieving optimal solder joints. The reflow profile is a graph that shows the temperature of the PCB over time during the reflow process. It typically consists of several stages, including preheating, soak, reflow, and cooling. Each stage is carefully controlled to ensure that the flux is properly activated, the solder melts completely, and the joints solidify properly without overheating the components.
Recommendations for Solder Paste in Indonesia
When selecting solder paste in Indonesia, several factors come into play, including availability, cost, and suitability for your specific application. Several reputable brands are available through online retailers and electronics suppliers. Look for solder paste that is specifically formulated for SMT applications and has a fine particle size distribution for optimal stencil printing. Also, consider the type of flux used in the solder paste. No-clean fluxes are convenient for eliminating the need for post-soldering cleaning, but they may leave a slight residue that could affect long-term reliability in some applications. Water-soluble fluxes, on the other hand, require cleaning after soldering but offer excellent electrical performance.
For hobbyists and DIY enthusiasts, consider starting with a small quantity of solder paste to experiment with different application techniques and reflow profiles. A syringe-style dispenser is a convenient way to apply the paste manually, especially for small or irregularly shaped components. For larger projects, a stencil and squeegee will provide more consistent and efficient results. When choosing a stencil, consider the material and thickness. Stainless steel stencils are durable and precise, but they can be more expensive than polyester stencils. The thickness of the stencil should be carefully matched to the size and pitch of the components being soldered. It's also worth investing in a good reflow oven or hot air station for controlled and consistent reflow soldering. While a toaster oven can be used as a makeshift reflow oven, it's difficult to control the temperature accurately, which can lead to poor solder joints or damaged components. Finally, don't forget to practice proper safety precautions when working with solder paste. Wear gloves and eye protection to avoid skin contact and inhalation of fumes. Work in a well-ventilated area to minimize exposure to flux fumes.
Solder Paste: A Closer Look at Flux and Alloys
To truly understand solder paste, it's essential to delve deeper into its two primary components: flux and solder alloys. The flux is a chemical agent that cleans the surfaces to be soldered, removing oxides and other impurities that can prevent proper wetting. Different types of fluxes are available, each with its own strengths and weaknesses. Rosin-based fluxes are traditional and offer excellent wetting properties, but they leave a sticky residue that requires cleaning. No-clean fluxes leave minimal residue, but they may not be as effective at removing heavy oxidation. Water-soluble fluxes are easy to clean with water, but they can be corrosive if not cleaned properly. When choosing a flux, consider the type of metal you're soldering, the level of cleanliness required, and the ease of cleaning.
The solder alloy is the metallic material that forms the bond between the components and the PCB. Traditionally, tin-lead alloys were the most common, but due to environmental concerns, lead-free alloys are becoming increasingly popular. Lead-free alloys typically consist of tin, silver, and copper, with various other elements added to fine-tune their properties. Lead-free alloys generally have a higher melting point than tin-lead alloys, which requires adjusting the reflow profile accordingly. They may also require more aggressive fluxes to achieve proper wetting. The choice of solder alloy depends on factors such as cost, reliability requirements, and environmental regulations. Some applications, such as aerospace and medical devices, may still require the use of tin-lead alloys due to their proven reliability. However, for most consumer electronics applications, lead-free alloys are a viable and increasingly common alternative. The particle size of the solder alloy in solder paste is also critical. Finer particles allow for better stencil printing and more consistent solder joints, especially for fine-pitch components.
Tips and Tricks for Using Solder Paste
Mastering the art of soldering with solder paste involves more than just applying the paste and heating it up. Here are some essential tips and tricks to help you achieve professional-quality results:
Proper Stencil Alignment: Precise stencil alignment is crucial for ensuring that the solder paste is deposited exactly where it needs to be. Use alignment pins or fiducial markers to ensure accurate alignment. Controlled Squeegee Pressure: Applying the correct amount of pressure on the squeegee is essential for consistent solder paste deposition. Too much pressure can cause the paste to smear, while too little pressure can result in insufficient paste transfer. Component Placement: Accurately placing the components on the solder paste pads is critical for ensuring proper alignment during reflow. Use tweezers or a vacuum pickup tool for precise placement. Reflow Profiling: Optimizing the reflow profile for your specific solder paste and components is essential for achieving reliable solder joints. Consult the solder paste manufacturer's datasheet for recommended reflow profiles. Inspection and Rework: After reflow, carefully inspect the solder joints for any defects, such as bridges, shorts, or cold solder joints. Use a magnifying glass or microscope for close inspection. Rework any defective joints using a hot air station or soldering iron. Store solder paste properly: Ensure solder paste is properly stored. Solder paste typically comes in jar.
Solder Paste: Troubleshooting Common Issues
Even with the best techniques, you may still encounter some issues when using solder paste. Here are some common problems and their solutions:
Bridging: Bridging occurs when solder flows between adjacent pins or pads, creating a short circuit. This can be caused by excessive solder paste, misaligned stencils, or insufficient spacing between pins. To prevent bridging, use a stencil with the correct aperture size, ensure accurate stencil alignment, and reduce the amount of solder paste applied. Cold Solder Joints: Cold solder joints are characterized by a dull, grainy appearance and poor electrical conductivity. This can be caused by insufficient heat, contaminated surfaces, or oxidized solder paste. To prevent cold solder joints, ensure that the components and pads are clean and free of oxidation, use fresh solder paste, and increase the reflow temperature or time. Tombstoning: Tombstoning occurs when a component lifts up on one end during reflow, resembling a tombstone. This can be caused by uneven heating, unbalanced surface tension, or misaligned components. To prevent tombstoning, ensure uniform heating across the board, use components with balanced terminations, and accurately align the components on the solder paste pads. Solder Balls: Solder balls are small spheres of solder that appear around the solder joints after reflow. This can be caused by excessive flux, improper reflow profiling, or contaminated surfaces. To prevent solder balls, use the correct amount of flux, optimize the reflow profile, and ensure that the PCB and components are clean.
Fun Facts About Solder Paste
Did you know that solder paste is used in almost every electronic device you use daily? From your smartphone to your laptop to your car, solder paste plays a crucial role in connecting the components that make these devices work.
Another fun fact is that the particle size of the solder alloy in solder paste is incredibly small, typically ranging from 20 to 45 microns. That's smaller than the width of a human hair! This fine particle size is essential for achieving consistent and reliable solder joints, especially for fine-pitch components. Solder paste is not just used for attaching electronic components to PCBs; it's also used in other applications, such as repairing damaged PCBs, creating custom circuits, and even in some art projects. Some artists use solder paste to create intricate sculptures and jewelry. The development of solder paste has been crucial for the miniaturization of electronic devices. Without solder paste, it would be impossible to assemble the densely populated PCBs found in modern smartphones, laptops, and other electronic gadgets. The quality of solder paste can vary significantly depending on the manufacturer and the specific formulation. High-quality solder paste will have a consistent particle size distribution, a stable viscosity, and a reliable flux that effectively removes oxides and impurities. Investing in high-quality solder paste can save you time and frustration in the long run by reducing the number of defects and improving the overall reliability of your solder joints.
How to Properly Apply Solder Paste
Applying solder paste correctly is crucial for achieving reliable solder joints. Here's a step-by-step guide to the process:
1.Prepare the PCB and Stencil: Ensure that the PCB and stencil are clean and free of any debris or contamination. Use isopropyl alcohol to clean the PCB and stencil if necessary.
2.Align the Stencil: Carefully align the stencil with the PCB, ensuring that the stencil apertures are perfectly aligned with the component pads. Use alignment pins or fiducial markers to achieve accurate alignment.
3.Apply the Solder Paste: Apply a bead of solder paste along one edge of the stencil. Use a squeegee to spread the solder paste evenly across the stencil, ensuring that all the apertures are filled.
4.Remove the Stencil: Carefully remove the stencil from the PCB, ensuring that the solder paste remains on the component pads.
5.Inspect the Solder Paste Deposition: Inspect the solder paste deposition to ensure that it is consistent and uniform. Look for any missing solder paste, bridging, or smearing.
6.Place the Components: Carefully place the components on the solder paste pads, ensuring that they are properly aligned.
7.Reflow the Solder Paste: Reflow the solder paste using a reflow oven or hot air station, following the recommended reflow profile for your specific solder paste and components.
8.Inspect the Solder Joints: After reflow, carefully inspect the solder joints for any defects, such as bridges, shorts, or cold solder joints.
What if Solder Paste Goes Wrong? Troubleshooting Guide
Even with careful application, problems can arise. Here’s a troubleshooting guide:
Problem: Solder paste is too dry. Solution: The solder paste may have been exposed to air. Try to gently mix it (if it hasn't hardened completely). Discard if it's unusable. Always store solder paste properly. Problem: Solder paste is smearing under the stencil. Solution: Reduce squeegee pressure or slow down squeegee speed. Ensure the stencil is flush with the PCB. The solder paste might be too warm, try cooling it slightly before application. Problem: Components are shifting during reflow. Solution: Ensure even heat distribution in your reflow method. Apply a small amount of adhesive to hold components in place during reflow. Use a slower preheating ramp rate. Problem: Excessive solder balls are forming. Solution: This could indicate excessive flux. Ensure you're using the correct amount of solder paste. Adjust the reflow profile to have a longer soak time to allow the flux to activate properly. Problem: Voids are present in the solder joints. Solution: This could be due to outgassing during reflow. Vacuum reflow ovens can help. Ensure the PCB and components are dry before assembly. Optimize the reflow profile.
Top 5 Reasons to Use Solder Paste
Here's a listicle highlighting why solder paste is a superior choice for electronics assembly:
1.Precision and Accuracy: Solder paste allows for precise and controlled application, especially when used with a stencil. This is essential for soldering surface mount components (SMCs) with fine pitches.
2.Consistency: Solder paste ensures a consistent amount of solder is applied to each joint, resulting in uniform and reliable solder connections.
3.Efficiency: Applying solder paste with a stencil is much faster and more efficient than soldering individual components with traditional solder wire.
4.Reduced Rework: The precision and consistency of solder paste significantly reduce the need for rework, saving time and resources.
5.Professional Results: Using solder paste allows you to achieve professional-quality solder joints, regardless of your experience level.
Question and Answer Section about Solder Paste
Q: How long does solder paste last?A: The shelf life of solder paste varies depending on the manufacturer and storage conditions, but it's generally recommended to use it within 6-12 months of the manufacturing date. Storing it in a refrigerator can extend its shelf life.
